Open Air Frame Computer Case, ATX PC Test Bench Chassis Case Rack, DIY Gaming Computer Case Chassis, ATX Power Supply Unit, SPCC Material Thickened Motherboard Widely Body Heat Dissipation Design

Installation Steps: Step 1, when placing the chassis, the bottom groove should face downwards and the plane should face upwardsStep 2, lift the side panel and lean it against the bottom plate (with the side panel groove facing outward), and use hexagonal bracket screws to secure the side panel to the bottom plateStep 3, fix the two triangular plates at the connection between the bottom plate and the side plate with hexagonal bracket screwsStep 4, install copper bolts according to the empty space of screws on the base plateStep 5, install the motherboard with screws and install the power supply with hexagonal bracket screwsStep 6, Install hard drive, graphics card, host, etc. according to your needs

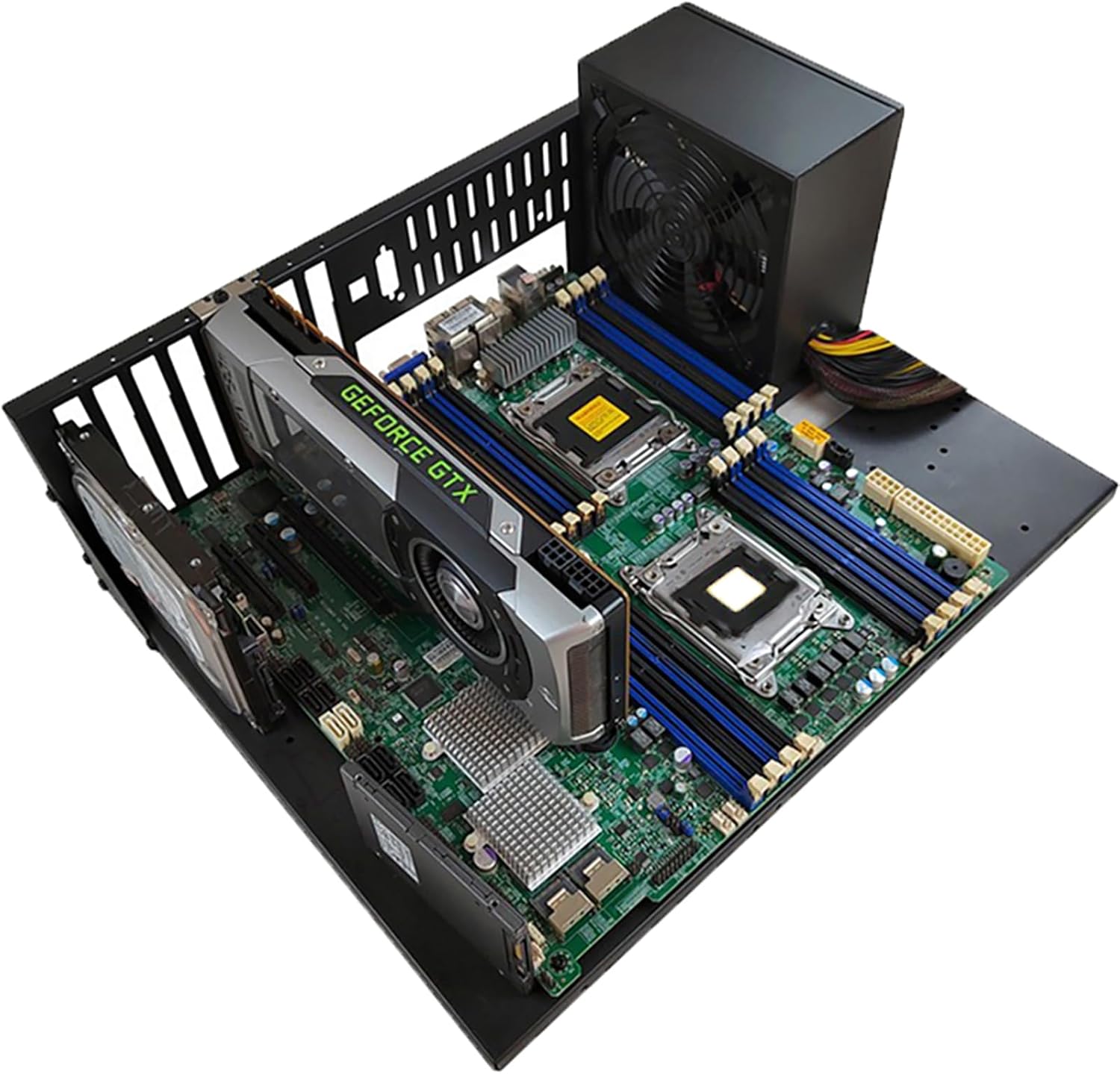

• Open Chassis: This product adopts an open design, with heat dissipation holes designed at the power supply position. The wide body design increases the distance between graphics cards, ensuring good heat dissipation and facilitating installation, use, and cleaning
• Material Quality: The motherboard material of this product is 0.8mm SPCC steel plate, the surface is baked with black sand grain paint

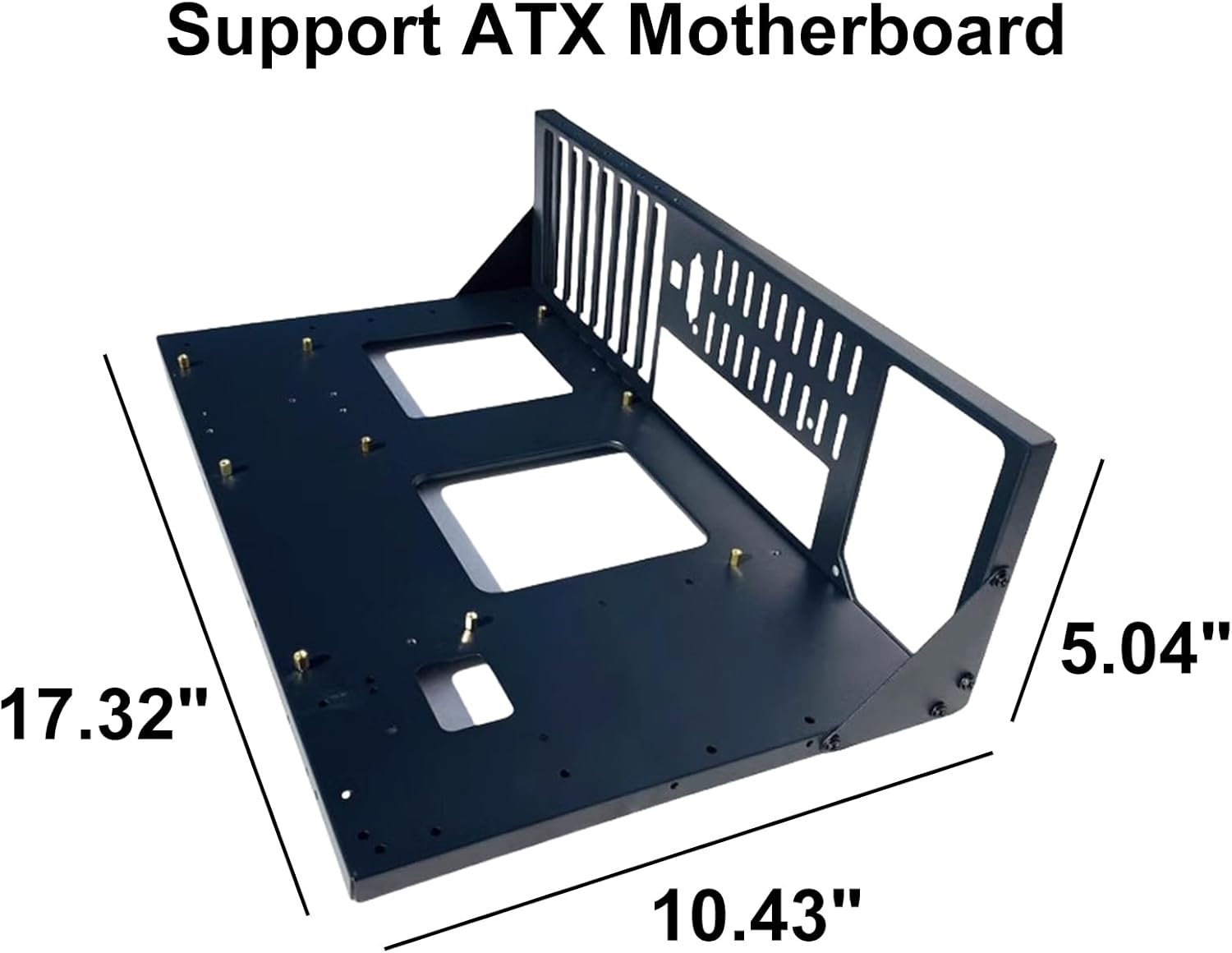

• ATX Parameters: 17.32x10.43x5.04 inches, weighing 2.09lb; Supports motherboards within 12.01x9.65 inches(ITX/MATX/ATX motherboard);
• Power Supply: Standard ATX power supply, reference size 150mm * 86mm * (140-250) mm; Supports SSD * 2 and HDD * 1
• DIY: According to the motherboard model, the length and width of graphics cards are not limited;Simple parts and installation steps provide users with the fun of DIY
